Moving Column Gantry Machine Features
The Moving Column Gantry CNC Machine is a versatile and advanced piece of machinery used in various industries for precision machining. It features a gantry-style structure with a movable column, allowing for enhanced accessibility and flexibility during the manufacturing process.
Modular Design: Easy to upgrade and customize based on specific production needs.
Advanced Control Systems: Equipped with the latest CNC technology for precise movement and control.
User-Friendly Interface: Designed for ease of operation, reducing the learning curve for operators.
Safety Features: Incorporates multiple safety measures to protect both the machine and the operator.

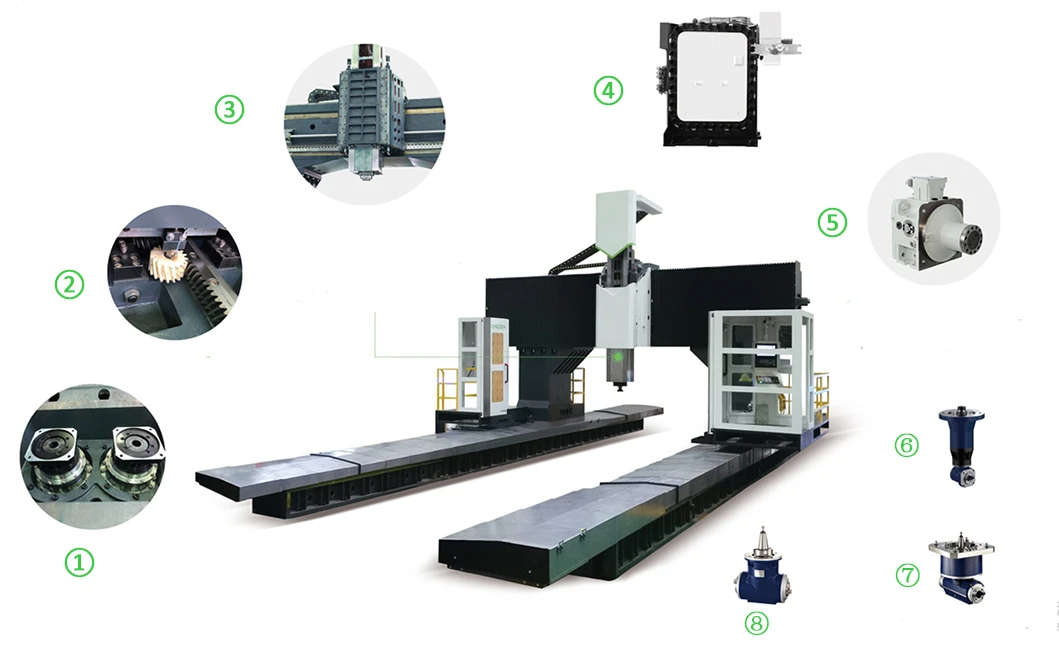

CNC Gantry Machine Structure Characteristics
①. Dual Motor with Anti-Backlash Transmission Structure
High Precision, Heavy Load, High Speed, Low Noise, Longer Service Life.
②. Gear Transmission
High Precision, Heavy Load, High Speed, Low Noise, Longer Service Life.
③. Square Ram and Sliding Seat Structure
Dimension:500x500, Heavy-Duty Design;
Direct-Driven Design;
Large-Size and Heavy-Duty design ensures that the ram is firmly connected;
Three extended sliders at the top and four standard sliders at the bottom.
④. Vertical / Horizontal Automatic Tool Magazine
⑤. Italy BF Gear Box
High-performance speed, low noise. It could expand the motor's constant power range. It is easy to install. The machine can be used in conjunction with multiple series of motors. It can adapt to high-strength tension and small size.
⑥. Extended Angle Milling Head
⑦. Automatic Hydraulic Angle Milling Head
⑧. Two-Way Spindle Angle Milling Head
Advantages of Moving Column Gantry Machines
1. High Precision: Offers superior accuracy in machining due to its rigid construction and advanced control systems.
2. Flexibility: The moving column design allows easier access to the workpiece, facilitating the handling of large and complex parts.
3. Efficiency: Reduces setup times and increases production rates with its quick positioning capabilities.
4. Reliability: Built with robust components to ensure long-term durability and minimal downtime.
Applications
This type of CNC machine is widely used in the production of complex parts for industries such as automotive, aerospace, and heavy machinery. It is particularly suited for milling, drilling, and cutting operations on large-scale components.
Moving Column Series Parameters
| Model | GMMD-16042 | ||
| Subject | Specifications | Units | |
| Travel | X-Axis | mm | 16000 |
| Y-Axis | mm | 4200 | |
| Z-Axis | mm | 1500 | |
| Spindle Nose to Worktable | mm | 350-1850 | |
| Three-Axis Guideway | X/Y Heavy Load Roller Linear Guideway Z-Axis Square-Type Ram | ||
| Door Width | 4200 | ||
| Type of Ram | Square-Type Ram (500 * 500) | ||
| Worktable | Worktable Size(L*W) | mm | 16000*3500 |
| Maximum Table Load | t | 50 | |
| T-Slot | mm | 36*200 | |
| Spindle | Spindle Type | type | BBT-50 |
| Spindle R.P.M. | rpm | 6000 | |
| Spindle Drive Type | DDS | ||
| Feedrate | Rapid Traverse (X/Y/Z) | m/min | 6/8/8 |
| Cutting Feedrate (X/Y/Z) | m/min | 6 | |
| Tool Changer | ATC | 24 (Option: 40/60) | |
| Motor | Spindle Motor | KW | 17-42 |
| Three-Axis Servo Motor | KW | 5.2/5.2/5.2 | |
| Power Required | Power Requirement | kva | 60 |
| Air Pressure Requirement | kg/cm² | 6^8 | |
| Others | External Dimensions (L*W*H) | mm | 20000x5860x5800 |
| Gross Weight | t | 145 | |
