Great Magtech (Xiamen) Electric Co., Ltd is one of the most reliable manufacturers and suppliers of gme-fh200 hard steel end mill in China. We warmly wlecome you to buy high quality gme-fh200 hard steel end mill from our factory. Contact us for more details.

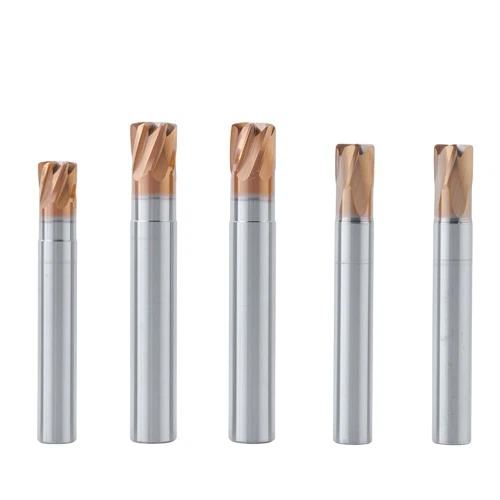

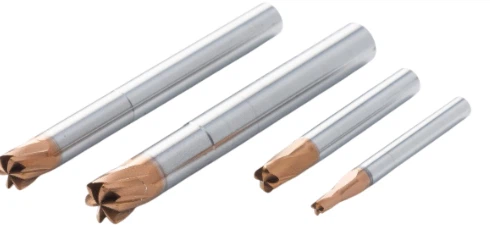

GME-FH200 Hard Steel End Mill Description
This end mill adopts a unique large arc cutting edge design, which significantly increases the feed speed and reduces cutting resistance. It is suitable for efficient rough processing of high-hard steel in molds, aerospace and other fields; the optimized chip groove structure ensures smooth chip evacuation, and combined with wear-resistant coating technology, it still maintains a long life under high-speed and high-feed conditions, supports dry cutting and minimal lubrication processing, and is an ideal choice for improving high-hard steel processing efficiency.
GME-FH200 Hard Steel End Mill Features
●Specially designed for high-feed rough machining of 35~65HRC high-hardness materials.
●Special dedicated tool design, perfect thin cutting effect, high-feed machining, significantly improves machining efficiency.
●The tool adopts a new ultra-fine carbide matrix and is equipped with a new generation of high-hardness coating, which makes the tool have extremely high wear resistance and high temperature stability, suitable for various working conditions.
GME-FH200 Hard Steel End Mill Specifications
| Parameter | Specification |
|---|---|
| Tool Model | GME-FH200-R6-08005-H |
| Tool Specification | D8×R0.5×7×24×75×d8×D7.5 |
| Workpiece Material | SKD11 (58-62 HRC) |
| Cutting Speed (Vc) | 60 m/min |
| Feed per Tooth (fz) | 0.14 mm/z |
| Depth of Cut (ap/ae) | ap=0.1mm, ae=6mm |
| Cooling Method | Air Cooling |
| Machining Method | Side Milling |
