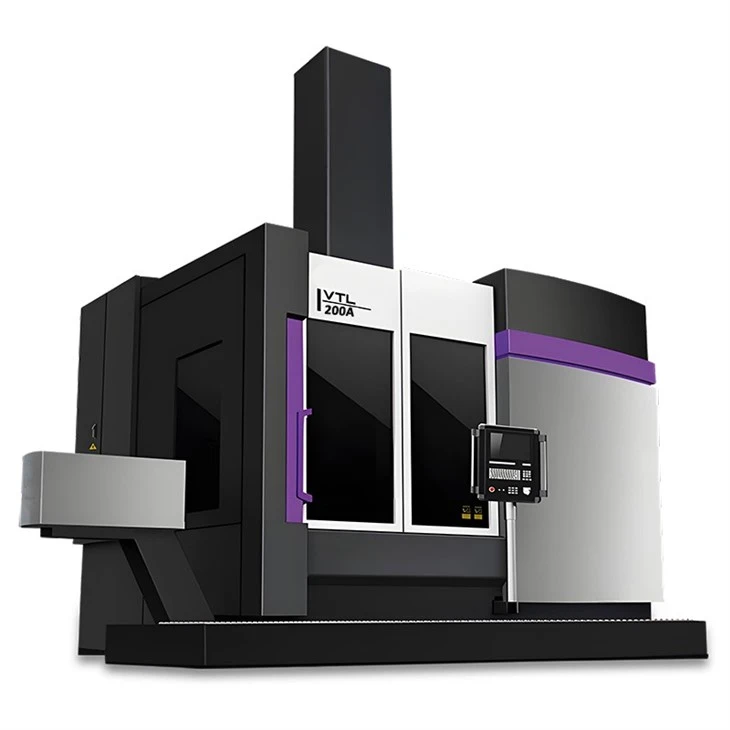

Vertical CNC Lathe Machines Description
The lathe machine adopts a structure with full protection of the main machine, and a centralized layout of mechanical, electrical, and hydraulic systems. It is mainly composed of a machine, a tool holder, X, Z direction movement, and worktable axis rotation, milling axis B, an operating console, an automatic chip conveyor, automatic lubrication, a hydraulic system, a tool magazine, protection, an electronic control system, and an electronic control box. The machine tool can be equipped with an in-machine tool setting device, which can realize an automatic tool changing device, automatic processing, improve processing quality, and reduce operating costs.
VTL-200A Vertical CNC Lathe Structural Characteristics
This vertical lathe is equipped with advanced and reliable electromechanical components from home and abroad, and has excellent structural performance. It has the characteristics of high rigidity, reasonable structure, automatic tool change, high degree of automation, easy operation, safety and reliability. It is suitable for high-speed steel tools, carbide tools and various high-performance tools, and can process workpieces made of ferrous metals, non-ferrous metals and some non-metallic materials. It can complete the processes of turning internal and external cylindrical surfaces, internal and external conical surfaces, planes, rotary surfaces, grooving, threading, etc.
The vertical lathe's base is made of high-strength gray iron cast as a whole, annealed, and stress-eliminated before fine machining. The base is designed with a bilaterally symmetrical structure, combining annular reinforcement ribs and equally divided radial reinforcement ribs, and rationally arranging triangular reinforcement ribs to make the base a solid whole, preventing deformation caused by buckling and vibration; making the base have high strength, rigidity and seismic resistance, and improving static and dynamic rigidity. The base is supported by a plane bearing and centered by a double-row cylindrical roller bearing. The base is fixed to the VTL foundation through a machine tool fixture, and all other machine tool components are fixed to this base.
accuracy report by Laser
The Z-axis data is as follows:
Backlash: 0.0064
Positioning Accuracy: 0.011434
Repeatability: 0.004025
Positional Deviation: 0.0058
The X-axis data is as follows:
Backlash: 0.0018
Positioning Accuracy: 0.013755
Repeatability: 0.005931
Positional Deviation: 0.0119
All units are in millimeters (mm).
Vertical Lathe Machine Parameters
| Item | Unit | Specification | |
| Main Parameters | Workbench diameter | mm | 1800 |
| Maximum rotation diameter | mm | 2100 | |
| Maximum turning diameter | mm | 2000 | |
| Maximum workpiece height | mm | 1800 | |
| Maximum workpiece weight | Kg | 10000 | |
| Maximum torque of worktable | N．m | 22500 | |
| Main tooth Wheel Box | Spindle speed range | r/min | 1.5-200 |
| Workbench speed change gear | block | Two-speed infinite | |
| Main Motor Output Power | 30 minute rating | kW | 45 |
| Continuous Rating | kW | 37 | |
| Slip Pillow | Ram body cross-sectional dimensions | mm×mm | ☑220X220 |
| X -axis travel | mm | -100～+1650 | |
| Z-axis travel | mm | 1200 | |
| Beam | Crossbeam travel | mm | 1200 (6X200) |
| Feed Speed | Cutting feed speed | mm/rev | 0.2 ~ 1000 mm/min |
| Rapid feed rate | mm/min | 6000 | |
| Tool Holder | Single tool holder | 1 | |
| Turning tool bar size | mm×mm | 32×32 | |
| Tool Magazine | Broach type T type | Number of tools | 8 |
| Weight | Total weight of machine tool | Kg | Approximately 39,500 |
| System | CNC device model | FANUC oi TF | |
| Machine Appearance | Length × Width × Height | mm×mm×mm | 6700x4250x |
| 6500 | |||
| Total Electricity Source | Voltage | V | AC380 |
| Voltage fluctuation range | -10 to 10% | ||
| frequency | Hz | 50 ±1 | |
| Total power | kW | 60 | |
| Total Power Source | Main motor | kW | 37/45 |
| Hydraulic motor | kW | 2.2 | |
| Cooling pump motor | kW | 0.75 | |
| X -axis servo motor | Nm | 22 | |
| Z -axis servo motor | Nm | 22 | |
| Lifting motor | kW | 6.5 | |
| NC unit | KVA | 0.05 | |
| Control Panel | KVA | 0.02 | |
| Fan motor fluorescent lamp etc. | kW | 0.16 | |
| Chip conveyor motor | kW | 0.75 | |
| Hydraulic system pressure | Mpa | 5 | |
