Can a 5-axis CNC machine really improve your production? The answer depends on the parts you make.
If your work involves complex geometries, multi-sided machining, deep cavities, or tight tolerances, a 5-axis CNC machine can do far more than a standard 3-axis machine. It reduces setup time, improves accuracy, and enables faster, more efficient machining of complex parts.
In this article, you'll learn exactly what a 5-axis CNC machine can do, which parts and industries benefit the most, and why more manufacturers are choosing 5-axis machining.
What Is a 5-Axis CNC Machine?
A 5-axis CNC machine is an advanced machining center that moves a cutting tool or workpiece along five different axes. Besides the three linear axes (X, Y, and Z), it adds two rotary axes that allow the workpiece or spindle to rotate during machining.
The biggest difference between a 3-axis and a 5-axis CNC machine is flexibility. A 3-axis machine can only approach a part from one direction, which often requires multiple setups to machine different faces. In contrast, a 5-axis machine can automatically position the tool at different angles, allowing more surfaces to be machined in a single setup.
This additional movement doesn't just make the machine more advanced-it makes the machining process more efficient. By reducing repositioning and manual intervention, manufacturers can improve machining consistency while simplifying production.

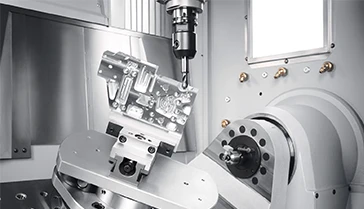

What Can a 5-Axis CNC Machine Do?
A 5-axis CNC machine does much more than simply move in two extra directions. It allows you to machine complex parts more efficiently, reduce setups, and achieve higher precision in a single operation. Whether you're producing one-off prototypes or high-value production parts, 5-axis machining opens up capabilities that are difficult or impossible with conventional 3-axis machines.
Here are the key things a 5-axis CNC machine can do.
Machine Five Sides of a Part in One Setup
One of the biggest advantages of a 5-axis CNC machine is its ability to machine multiple sides of a workpiece in a single setup. Instead of removing the part and repositioning it several times, the machine automatically rotates the workpiece or spindle to reach different faces.
This reduces setup time, minimizes positioning errors, and ensures better consistency across every finished part. For manufacturers producing precision components, fewer setups also mean fewer opportunities for mistakes and a smoother production process.
Machine Complex 3D Shapes
Many modern components feature freeform surfaces and complex geometries that are difficult to machine using conventional equipment. A 5-axis CNC machine allows the cutting tool to maintain the ideal angle while following intricate toolpaths, making these parts easier to produce with higher accuracy.
Typical examples include impellers, turbine blades, aerospace structural components, medical implants, precision molds, and other parts with curved or sculptured surfaces.
Machine Deep Cavities with Better Stability
Deep pockets and narrow cavities often require long cutting tools on a 3-axis machine, which can lead to vibration, tool deflection, and poor surface quality.
A 5-axis CNC machine solves this problem by tilting the tool closer to the workpiece, allowing shorter tools to be used whenever possible. This improves cutting stability, extends tool life, and delivers better machining accuracy and surface finish.
Machine Angled Holes and Compound Features
Many industrial components require machining features at different angles rather than on flat surfaces. With a 5-axis CNC machine, you can accurately machine inclined holes, side holes, chamfers, beveled surfaces, and other complex features without using special fixtures or multiple setups.
This not only improves machining efficiency but also ensures that every feature is positioned accurately relative to the rest of the part.
Machine Undercuts That 3-Axis Machines Cannot Reach
Some components include recessed areas or undercuts that are difficult for a standard 3-axis machine to access.
With two additional rotary axes, a 5-axis CNC machine can approach these areas from different directions, allowing more complete machining without redesigning the part or using multiple specialized tools. This gives engineers greater design freedom while reducing manufacturing complexity.
Produce Better Surface Finishes
Surface quality is especially important for aerospace, medical, mold, and precision engineering applications.
Because a 5-axis CNC machine can keep the cutting tool at an optimal angle throughout the machining process, it creates smoother toolpaths and more consistent cutting conditions. The result is a finer surface finish, fewer visible tool marks, and less manual polishing after machining.
Improve Accuracy on Precision Parts
Every time a workpiece is removed and re-clamped, there is a chance of introducing positioning errors.
Since a 5-axis CNC machine completes more operations in one setup, it significantly reduces cumulative errors and improves overall dimensional accuracy. This is particularly valuable when manufacturing parts with tight tolerances or complex geometric relationships.
Reduce Overall Machining Time
A 5-axis CNC machine helps shorten the entire production cycle-not simply by cutting faster, but by reducing non-cutting time.
With fewer setups, less manual handling, fewer fixtures, and fewer secondary operations, manufacturers can complete parts more efficiently and increase overall productivity. For businesses producing high-value or complex components, these time savings often translate directly into lower manufacturing costs and faster delivery.
Handle Small-Batch, High-Mix Production More Efficiently
Today's manufacturers are increasingly producing smaller batches of customized parts instead of large volumes of identical components.
A 5-axis CNC machine offers the flexibility needed for this type of production. It can quickly adapt to different part designs, reduce setup changes between jobs, and improve efficiency when machining a wide variety of complex components. This makes it an ideal solution for prototype development, custom manufacturing, and high-mix, low-volume production.
What Parts Can Be Made on a 5-Axis CNC Machine?
One of the biggest reasons manufacturers invest in a 5-axis CNC machine is its ability to produce highly complex parts with exceptional accuracy. If your component requires machining from multiple angles or features intricate geometries, a 5-axis machine is often the most efficient solution.
Here are some of the most common parts manufactured using 5-axis CNC machining.
Aerospace Parts
Aerospace components often feature complex contours, deep cavities, and tight tolerances. A 5-axis CNC machine can complete these features in fewer setups while maintaining high accuracy.
Typical parts include:
- Turbine blades
- Impellers
- Engine casings
- Structural brackets
- Aircraft frames
Medical Parts
Medical devices require outstanding precision and smooth surface finishes. A 5-axis CNC machine enables manufacturers to produce intricate components that meet strict quality standards.
Typical parts include:
- Orthopedic implants
- Dental implants
- Surgical instruments
- Bone plates
- Prosthetic components
Automotive Parts
From prototype development to high-performance vehicle components, 5-axis machining improves efficiency and accuracy in machining complex automotive parts.
Typical parts include:
Engine components
Transmission housings
Turbocharger impellers
Suspension parts
Prototype components
Mold & Die Components
Many molds contain freeform surfaces, deep pockets, and complex cavities that require multi-angle machining. A 5-axis CNC machine reduces manual repositioning while improving surface quality.
Typical parts include:
- Injection molds
- Die-casting molds
- Mold inserts
- Precision cavities
- Stamping dies
Energy & Industrial Equipment Parts
Large industrial equipment often includes components with multiple machining features and complex internal structures. A 5-axis machine improves machining efficiency while reducing production time.
Typical parts include:
- Pump housings
- Valve bodies
- Compressor impellers
- Turbine components
- Hydraulic manifolds
Robotics & Automation Parts
As automation equipment becomes more compact and sophisticated, component complexity continues to increase. A 5-axis CNC machine is ideal for producing precision parts with multiple machining features.
Typical parts include:
- Robot arm joints
- Gearbox housings
- Servo motor brackets
- Precision fixtures
- Automation equipment components
What Materials Can a 5-Axis CNC Machine Machine?
A 5-axis CNC machine is compatible with a wide range of materials, making it suitable for industries such as aerospace, medical, automotive, mold making, and precision engineering. With the right tooling and cutting parameters, it can machine both soft metals and hard-to-cut materials while maintaining excellent accuracy and surface quality.
Common materials include:
- Aluminum – Ideal for lightweight aerospace, automotive, and electronic components.
- Stainless Steel – Commonly used for medical devices, industrial equipment, and precision mechanical parts.
- Titanium – a preferred material for aerospace and medical applications due to its high strength and corrosion resistance.
- Tool Steel – Widely used for injection molds, die-casting molds, and stamping dies.
- Brass and Copper – Suitable for electrical components, valves, and precision fittings.
- Engineering Plastics – Including PEEK, Delrin, Nylon, PTFE, and other high-performance plastics.
- Composite Materials – Such as carbon fiber and fiberglass for lightweight structural components.
The material itself isn't the only factor that determines machining quality. Cutting performance also depends on the machine's rigidity, spindle configuration, cutting tools, cooling system, and machining strategy. Choosing the right combination ensures better surface finishes, longer tool life, and more stable machining results.
FAQs
1. What can a 5-axis CNC machine make?
A 5-axis CNC machine can produce a wide variety of complex parts, including turbine blades, impellers, aerospace components, medical implants, mold inserts, automotive parts, valve bodies, and precision mechanical components. It's especially suitable for parts that require multi-sided machining or intricate 3D surfaces.
2. What is the biggest advantage of a 5-axis CNC machine?
The biggest advantage is the ability to machine multiple sides of a part in a single setup. This reduces repositioning, improves machining accuracy, shortens production time, and delivers better surface finishes.
3. Is a 5-axis CNC machine better than a 3-axis machine?
Not always. A 5-axis machine is the better choice for complex, high-precision, or multi-sided parts. However, for simple flat parts or basic machining operations, a 3-axis machine may provide a more cost-effective solution.
4. Can a 5-axis CNC machine complete a part in one setup?
In many cases, yes. One of the key benefits of 5-axis machining is the ability to access multiple faces of a workpiece without repeated repositioning, helping improve both accuracy and productivity.
5. Is a 5-axis CNC machine suitable for small-batch production?
Absolutely. A 5-axis CNC machine is ideal for prototypes, custom components, and high-mix, low-volume production because it reduces setup time and allows manufacturers to switch between different part designs more efficiently.
6. How do I know if I need a 5-axis CNC machine?
If your parts require complex geometries, multi-sided machining, tight tolerances, or high-quality surface finishes, a 5-axis CNC machine is likely the right choice. If you're unsure, sharing your part drawings with an experienced CNC machine supplier is the best way to determine the most suitable machining solution.
Conclusion
A 5-axis CNC machine gives you the ability to machine more complex parts with fewer setups, higher accuracy, and greater efficiency. If your applications involve multi-sided machining, complex geometries, or tight tolerances, it can be a valuable investment for your business.
Not sure which 5-axis CNC machine is right for your application? Send us your part drawing, and our engineers will recommend the best solution for your production needs.
